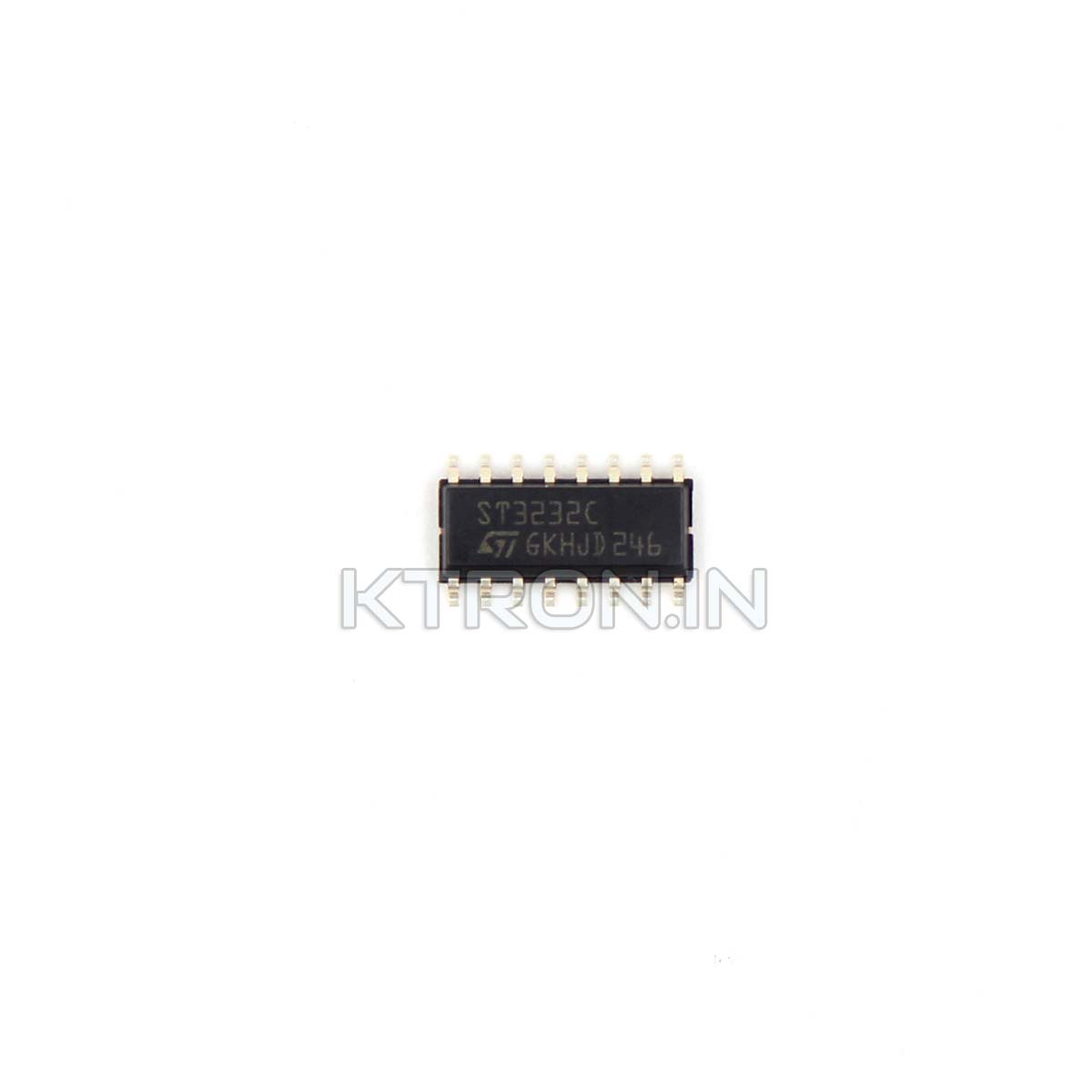

ST3232CDR RS-232 Transceiver IC – STMicroelectronics – SOIC-16

The ST3232CDR RS-232 Transceiver IC is a 3V powered EIA/TIA-232 and V.28/V.24 communication interfaces with low power requirements and high data-rate capabilities. This device have a proprietary low dropout transmitter output stage providing true RS-232 performance from 3 to 5.5 V supplies. The devices require only four small 0.1 mF standard external capacitors for operation from a 3V supply.

Features:

• 300 µA supply current
• 300 kbps minimum guaranteed data rate
• 6 V/µs minimum guaranteed slew rate
• Meets EIA/TIA-232 specifications down to 3V
• Package: SOIC-16
