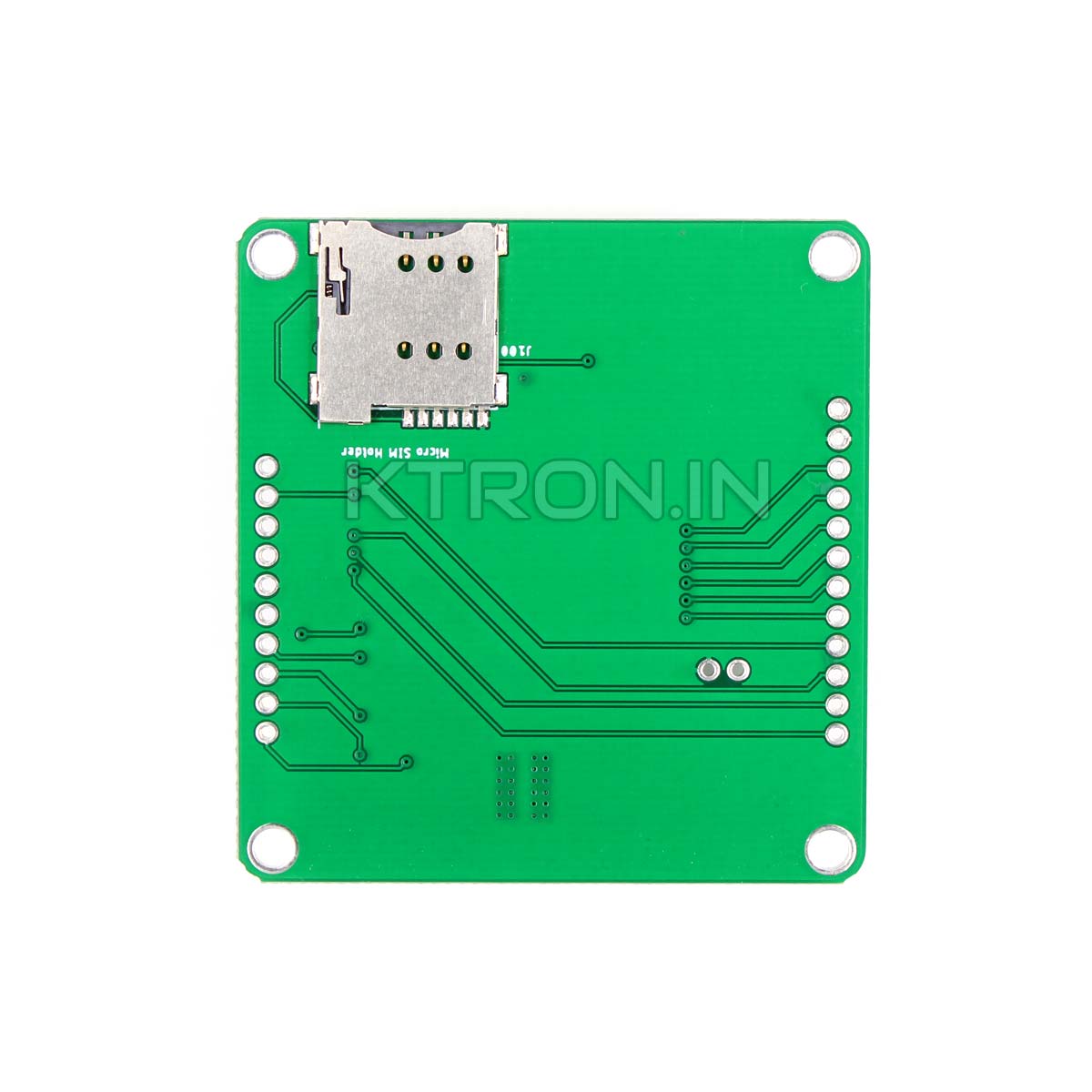

SIM A7670C 4G LTE Development Board
₹1,160.00 (Incl. of GST 18%)
GST Credit of ₹176.95available.
Know More
- Input Supply: 5V-12V DC
- DATA Transfer LTE(Mbps): 10 Downlink / 5 Uplink
- Power consumption: 300mA(MAX); <10mA (sleep mode)
- SIM Holder: Micro SIM
- ESD protection for Antenna and Power Supply
- SIMcom A7670C 4G LTE chip on-board
- Supports 4G Only
Get an alert when the product is in stock:
Frequently Bought Together
- 4G LTE Antenna 3.5dBi - Foldable(₹105.00 Incl. of GST)
- RF Cable IPX to SMA Female - 15cm Length(₹42.00
₹62.00Incl. of GST)
Description
The SIM A7670C 4G LTE Development Board is a Cat-1 Module which supports wireless communication modes of LTE-TDD/LTE-FDD. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate. This board features a serial interface and is based on the SIMCOM A7670C LTE modem. The serial interface allows for simple communication with a computer or laptop via a USB to Serial adapter or TTL converter. AT instructions are used to communicate with the A7670C.
The SIM A7670C 4G LTE Development Board is designed keeping in mind the requirements of the user. It has various pinouts from the module, such as RING – used to detect incoming call, DTR – to use the 4G Module in ultra low power sleep mode, STATUS – to detect the status of 4G Module, NETLIGHT – in case developer wants to use external LED to indicate network status, RESET – developer can use this pin to connect with MCU and reset the module if required. Apart from this, the module also has pinouts for connection of Speaker, Microphone, and PWM.
This SIM A7670C 4G LTE Development Board has onboard UART Logic Level Conversion, and Vdd needs to be connected to host reference voltage. It has a UFL connector, which allows connection of any antenna with this board. Apart from this, the module is very compact in size. It can be easily embedded in any customized PCB (Eagle library available in Downloads), and it can also be mounted using screws.
This module has sleep mode power consumption of <10mA, allowing the board to be powered by a small Li-ion Battery. MIC29302WU is used to step down the input voltage, which effectively allows input voltage as low as 5V.
The SIM A7670C 4G LTE Development Board supports multiple built-in network protocols like HTTP, HTTPS, FTP, FTPS etc., supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible withSIM7500/SIM7600 series modules.
Note: Warranty claims are not entertained for short-circuited boards.
Features
- Suitable for LTE networks
- Supports LTE-FDD and LTE-TDD frequency bands.
- Control via AT commands.
- Micro SIM Card Holder.
- Power LED and Network Status LED
- Powerful TCP/IP protocol stack for internet data transfer.
- Supports maximum 10Mbps downlink rate and 5Mbps uplink rate.
- Abundant software functions: FOTA, LBS, SSL
- U.FL male connector for external antenna
- On board UART logic level conversion
- Supported Band: LTE-FDD B1/B3/B5/B8 , LTE-TDD B34/B38/B39/B40/B41
- On board pins for RING, NETLIGHT, STATUS, DTR(DTE ready) and Reset
- Onboard pins for Speaker and Microphone
- Ultra low sleep mode current consumption: <10mA
Pin Configuration
Videos
Specification
Additional information
| Weight | 26 g |
|---|
by Syed Abuthahir (verified owner)
how can I use it with esp32 module?
it is not working with esp32 using micropython
by Syed Abuthahir (verified owner)
Technical support team assist me and issue get resolved.
Thanks
by Thanigaivel (verified owner)
from machine import UART
uart=UART(2, baudrate=115200,tx=17,rx=16)
uart.write(“AT\r”)
while uart.any()>0:
data=uart.readline()
data.decode()
print(data)
by Thanigaivel (verified owner)
use above code for Micropython
by Thanigaivel (verified owner)
can you explain the use of MOSI MISO SPI connection ?
is it for AT commands or for GPRS Data?
by Syed Abuthahir (verified owner)
can I get the schematic diagram for this board
by Syed Abuthahir (verified owner)
here is micropython code to connect internet – https://gist.github.com/abuvanth/001aa1cb28617faff9c3ab72409dd20a
by hanukanth (verified owner)
works well overal, but some specific 4g Airtel sim not working, i am tying to understand why? pleaase let me know if i am missing something
